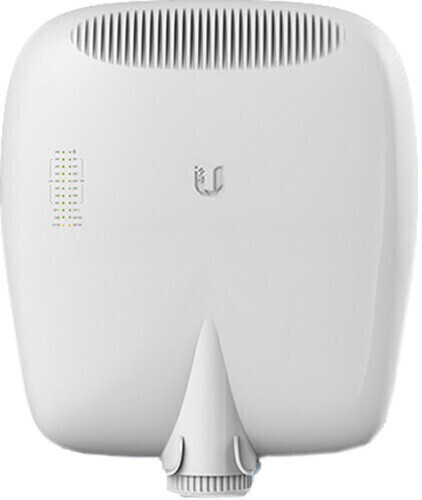

Ubiquiti EP‑S16 - is Layer-2 router with powerful routing features – such as load balancing and failover – provide redundancy and increased performance for outdoor wireless links.
| Option | Value |
|---|---|
| System Memory | 256 MB DDR3 RAM |
| Non-Blocking Throughput | 36 Gbps |
| Switching Capacity | 72 Gbps |
| Forwarding Rate | 53.57 Mpps |
| Max. Power Consumption | 40 W (Excludes PoE Output) |
| Power Input | (1) DC Terminal Block or (2) RJ45 (Ports 1 and 2) |
| Passive PoE Output | (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4
(12) 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16 |
| Power Monitoring | (1) DC Terminal Block, Input Power (2) RJ45, Ports 1 and 2, PoE Input or Output Power (14) RJ45, Ports 3 to 16, PoE Output Power |
| Networking Interfaces | (16) 10/100/1000 RJ45 Ports (2) 10/100/1000 RJ45/SFP+ Ports |
| Management Interface | (1) RJ45 Serial Port |
| Dimensions | 326.6 x 382.7 x 88.8 mm |
| Weight | 3.4 kg |
