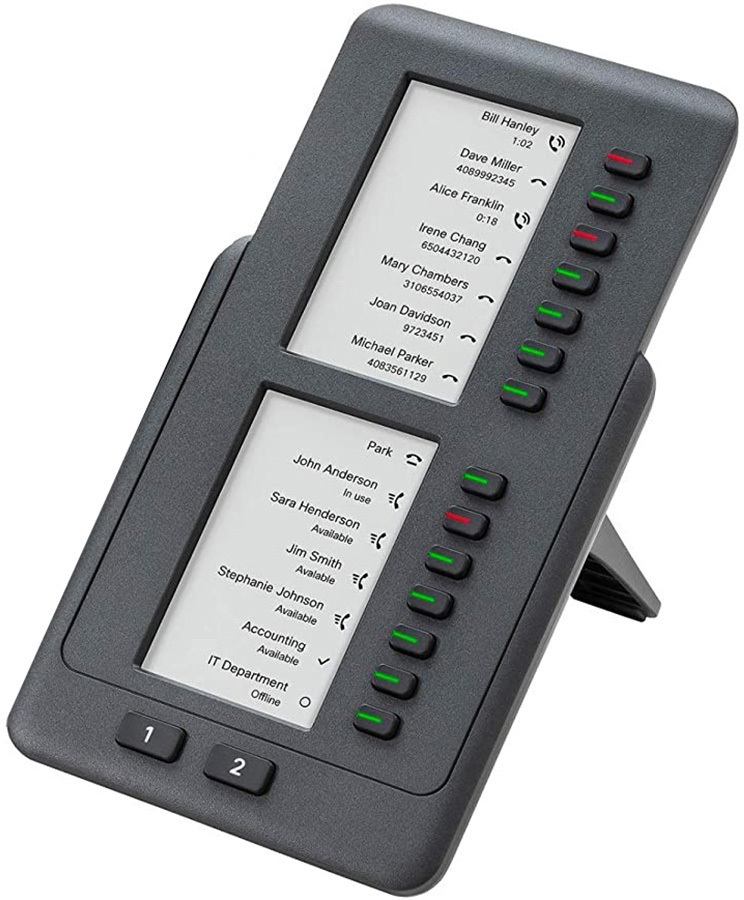

CP-68KEM-3PCC= Cisco IP Phone 6800 Key Expansion Module

CP-68KEM-3PCC=
Parametry produktu
Part number
CP-68KEM-3PCC=
Záruka
1 rok
Barva
černě-šedá
Typ instalace
Desktop/Wall Mount
VoIP protokol
SIP
Part number: CP-68KEM-3PCC= Výrobce: Cisco EAN: 889728068383
2 995 Kč
2 475 Kč bez DPH
ks
Skladem
Do košíku

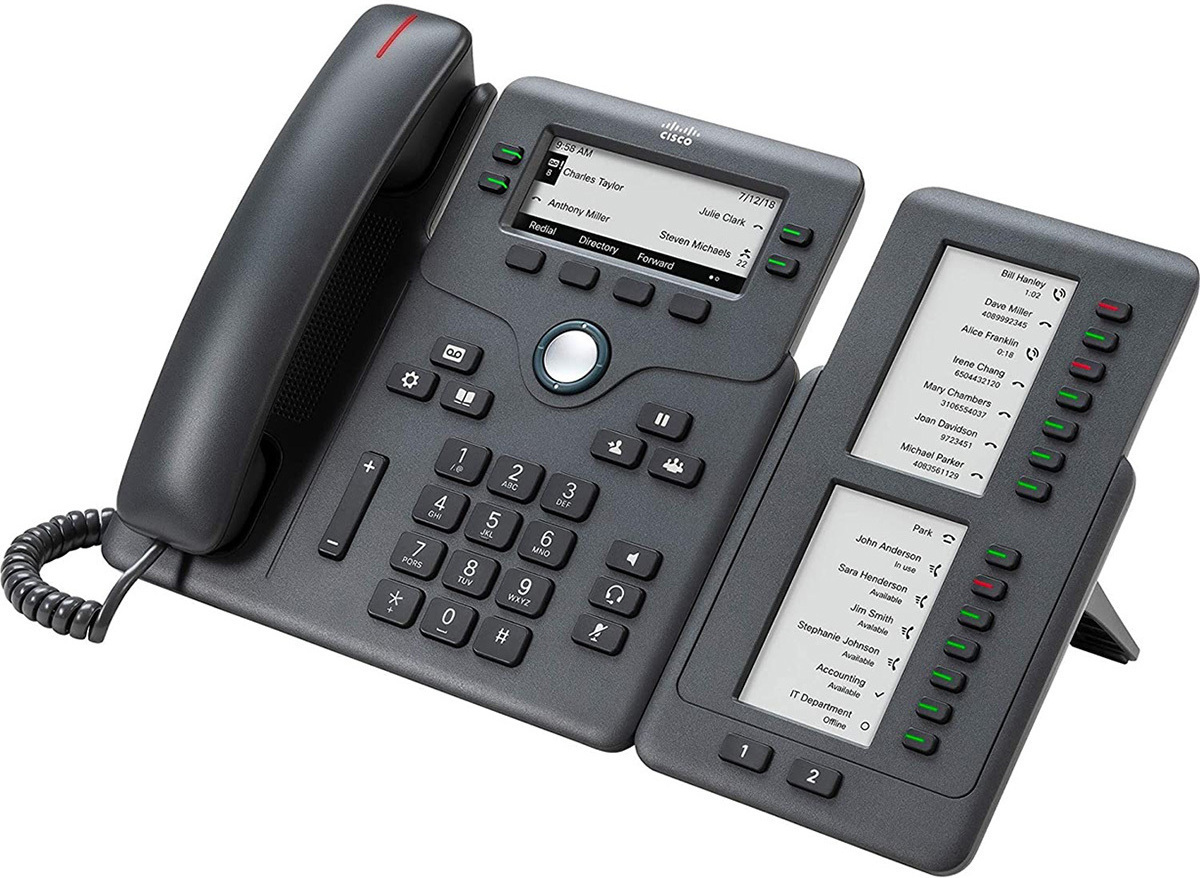

Cisco IP Phone 6800 Key Expansion Module. Modul rozšíření klávesnicepro IP Phone 6841, 6851

Cisco IP Phone 6800 Key Expansion Module features and benefits

KEM feature Benefits

Illuminated buttons

Off (dark)

Button is not configured

Green, steady

Configured correctly and is in the idle state

Red, steady

In use and has an active call on it or has a parked call

Amber, flashing

A configuration error has occurred for this button

Illuminated page buttons

Off (dark)

Page not in focus

Green, steady

Page in focus

Amber, flashing

Page not in focus, with one or more alerting or on-hold calls present on page

Hardware and power-saving features

Graphical display

Two 3.5-in (9-cm) grayscale backlit LCD displays, 160 x 270 resolution

Directory number and feature buttons

The module has 14 physical buttons (28 using page keys)

Page buttons

Use the 2 page buttons to access each page of 14 buttons and provide phone status

Power save mode

When the Cisco IP Phone 6851 is placed in power save mode, the 6800 KEM is also placed in power save mode. Pressing the select button while the phone and KEM are in power save mode will restart both the phone and the KEM
